To Add a Key Frame

There are four ways to create a Key Frame:

1. Select the required Channel or Action Channel in the Stage Tree.

2. Set the Time-line Marker to when the Key Frame should be added.

3. Click (Add Key Frame).
   Or:

1. Select the required Channel or Action Channel in the Stage Tree.

2. Set the Time-line Marker to when the Key Frame should be added.

3. Set the Key Frame:

   • Click in the Time-line Editor, or

   • With the mouse pointer over the Scene Editor, press Enter.
     Or:

1. Select the required Channel or Action Channel in the Stage Tree.

2. Set the Time-line Marker to when the Key Frame should be added.

3. In the Spline Editor, make sure to hold the pointer above the spline at the required time-line location (the spline should turn orange if doing this correctly).

4. Click the spline.

To Select One or More Key Frames

• Click on a Key Frame to select it. This clears the selection of any previously selected Key Frames.

• Ctrl-Click on a previously selected Key Frame to clear the selection of it.

• Ctrl-Click on Key Frames to have more than one selected.

• Shift-Click on a segment between two Key Frames to select both.

• Ctrl-Click on a segment to select all Key Frames.

  Note: When several Key Frames are selected, actions like move or delete affects all selected Key Frames.

To Move One or More Key Frames

1. Select one or more Key Frames.

   Tip: You can also hold down the S key and use the rubber band to select multiple Key Frames.

2. Drag the Key Frames along the time-line in the Dopesheet Editor.
   Or:

1. Select one or more Key Frames.

2. Drag the Key Frames along the time-line (horizontally) in the Spline Editor.

   Note: Dragging a Key Frame vertically in the Spline Editor changes the value of the Key Frame, not the time-line value.

To Move a Key Frame to a Specific Time

1. Enable the Key Frame Editors.

2. Select a Key Frame.

3. In the Key Frame editor, enter the time (in fields) in the Time input box.

To Copy a Key Frame

1. Select one or more Key Frames.

2. Press C while dragging the Key Frames to the new position in the Dopesheet Editor.

To Rename a Key Frame

1. Enable the Key Frame Editors.

2. Select a Key Frame.

3. In the Key Frame editor, enter a descriptive Key Frame name in the Name text box, and press Enter.

   Note: Special characters, such as space, are not allowed in Key Frame names.

To Delete a Key Frame

1. Select one or more Key Frames.

2. Click the (Delete Key Frame) button.
   Or:

1. Select one or more Key Frames.

2. Press Delete.

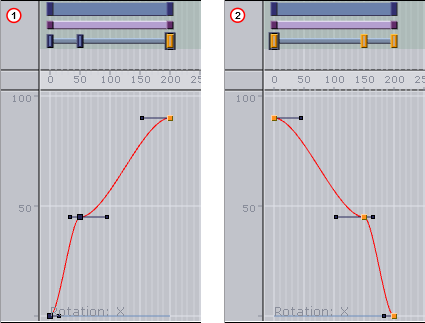

Reverse the Order of Selected Key Frames

Reversing the order of Key Frames is like mirroring the Key Frames.

To Reverse the Order of Key Frames

1. Select two or more Key Frames in the Dopesheet Editor.

2. While holding the mouse pointer over the Stage, Press Ctrl+R.
